Description：

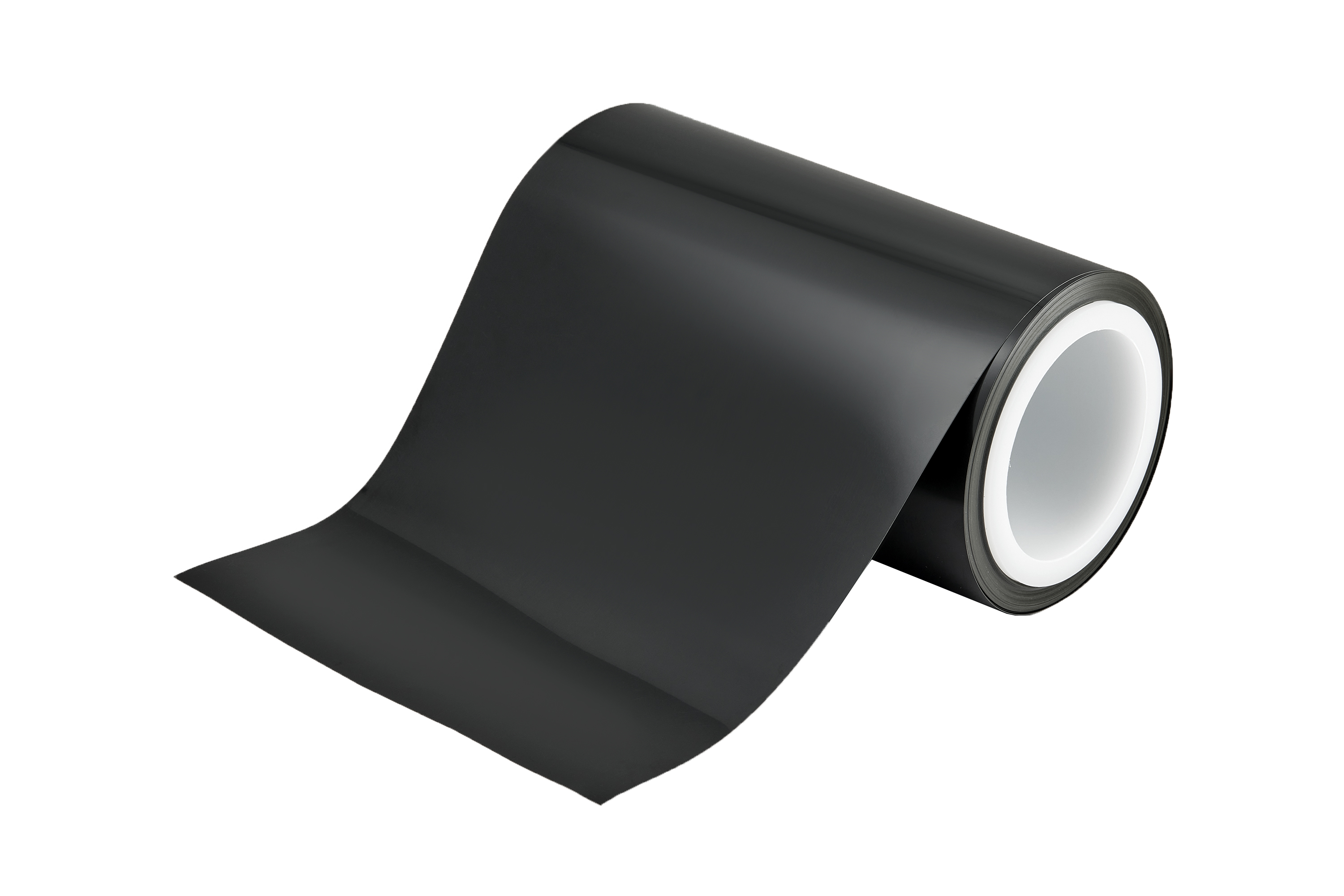

BYHS high-matted printable polyimide black film is based on BY black polyimide film or CN polyimide film, which is extruded and formed in one time, presenting a high matte black on one side and a regular PI on the other. Can be printed as a high temperature label.
Features:
500℃ Hating resistant on short time, one side produces viscosity, environment-friendly with halogen free, highest UL-94 flammability rating:V-0.
Structure：
Property parameter table：
性能Property | 单位Unit | BYHS2025 | BYHS2530 | BYHS5055 | 测试方法 Test Method |
|
PI 厚度Thickness | μm | 20 | 25 | 50 | ASTM D374 |
|
Binder 1 厚度Thickness | μm | 5±1 | 5±1 | 5±1 | ASTM D374 |
|
总厚度Total Thickness | μm | 25±3 | 30±3 | 55±3 | ASTM D374 |
|
宽度Width | mm | 500 | ASTM D374 |
|
拉伸强度 Tensile Strength | 纵MD | Mpa | ≥120 | ≥120 | ≥120 | ASTM D882 |
|
横TD | Mpa | ≥90 | ≥90 | ≥100 | ASTM D882 |
|
断裂伸长率 Elongation | 纵MD | % | ≥20 | ≥20 | ≥30 | ASTM D882 |
|
横TD | % | ≥20 | ≥25 | ≥40 | ASTM D882 |
|
透光率Transmittance | % | 0.0 | 0.0 | 0.0 | ASTM D1003 |
|
表面电阻Surface Resistivity | Ω | ≥1.0×1012 | ≥1.0×1012 | ≥1.0×1012 | ASTM D257 |
|
绝缘强度Dielectric Strength | KV | ≥1.0 | ≥1.0 | ≥2.0 | ASTM D149 |
|
光泽度Glossy | Gs | ≤4.0 | ≤4.0 | ≤4.0 | ASTM D523 |
|
Black Binder1 玻璃化温度 Glass Transition Temperature | ℃ | 260 | ASTM D3418 |
|
The above data are for reference only.
Application：
Heating resistant label, shielding, print, surface matte values are strictly managed on occasions.
Remarks：
Remark: The base film can be replaced by polyimide film CN, the type is CNHS.
